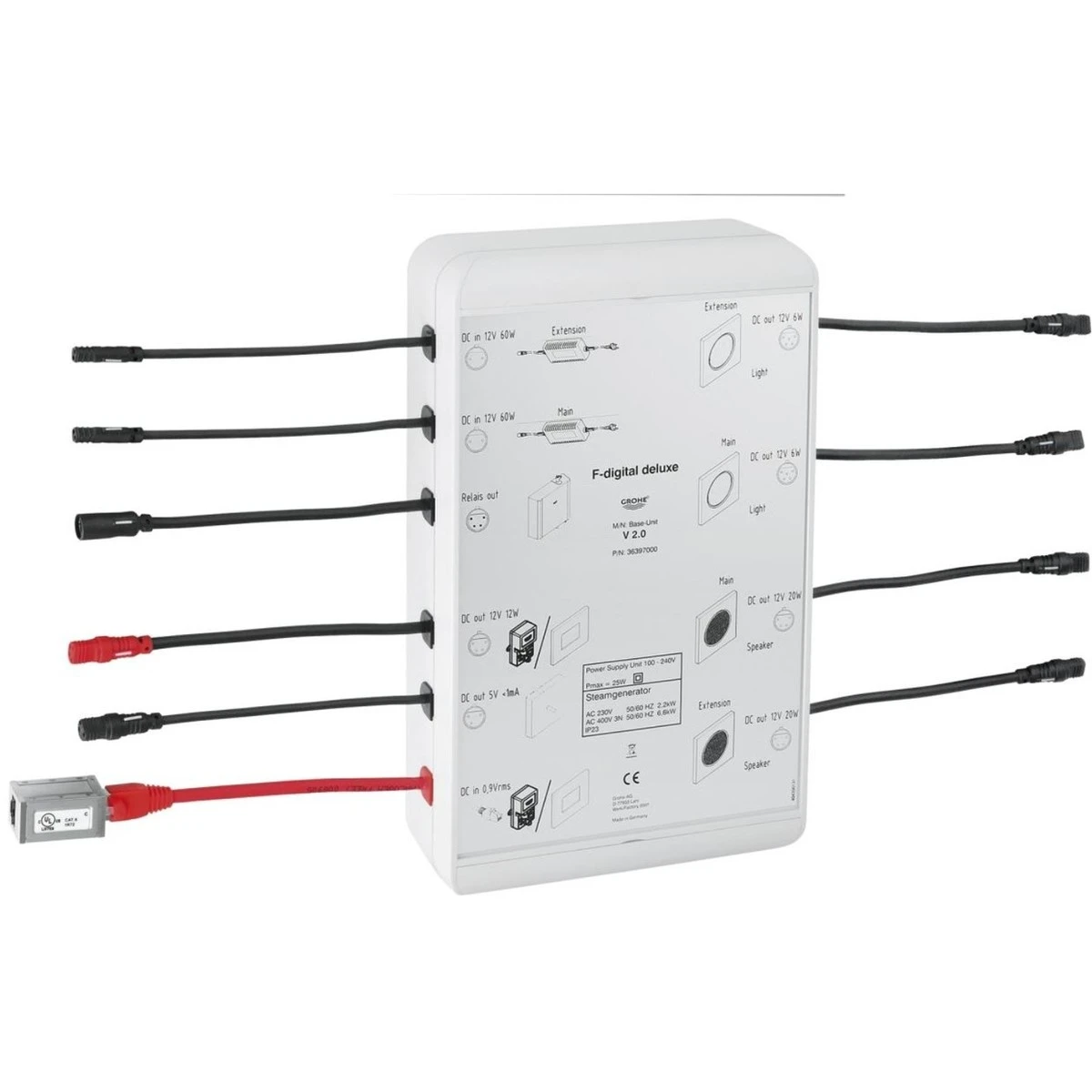

Grohe Base Unit Box 2.0 Bluetooth (BCU V2.0) 36397

Base Unit Box 2.0 Bluetooth (BCU V2.0)
for connecting light, sound and steam modules
consisting of 2 plug connections, each for one pair of sound modules (36 360 000)
2 plug connections, each for one pair of light modules (36 359 000) or 1 ceiling shower (27 865 000) with integrated light
2 plug connections for steam module (36 362 000 or 36 368 000), including 1 connection for steam generator and 1 connection for temperature sensor
2 plug connections for power supply (per power supply maximum 4 devices light/sound)
2 plug connections for the docking station or Bluetooth unit (supply voltage and data line)
CE approved
must be accessible for service
optional the base unit box can be placed into extra equipment 36 367 000
