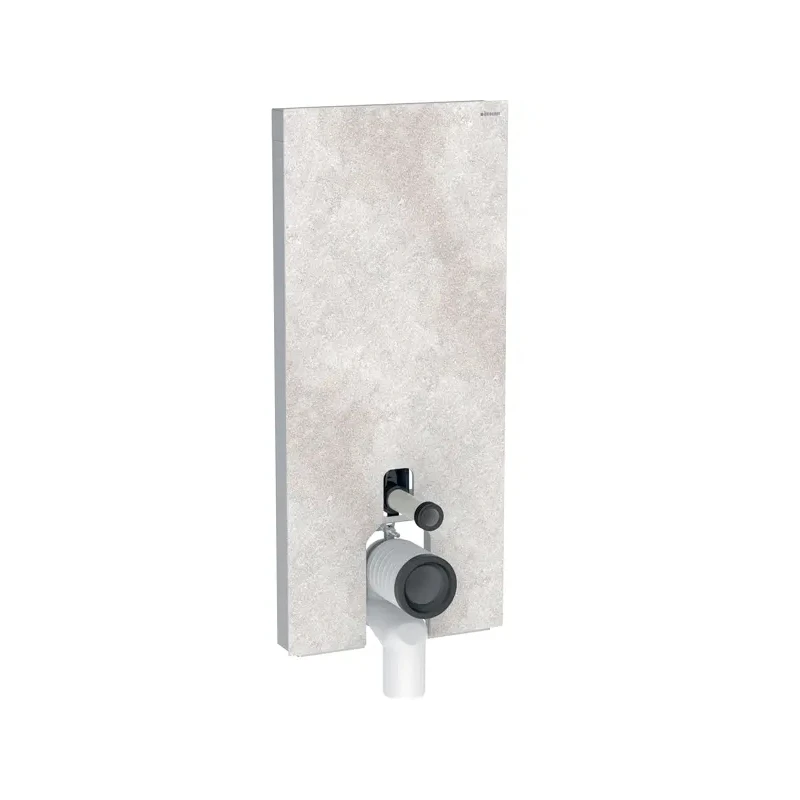

Geberit Monolith Plus For Floorstanding WC 114cm Concrete/Aluminium

Geberit Monolith Plus sanitary module for floor-standing WC, 114cm, front panel made of stoneware
Front cladding: Stoneware concrete look
Side cladding: aluminium
The colour and structure of natural products may vary
Protection degree IPX4
Protection class I
Nominal voltage 100-240 V AC
Mains frequency 50-60 Hz
Operating voltage 4.1 V DC
Power consumption 5 W
Flow pressure 0.1-10 bar
Maximum operating temperature, water 25°C
Flush volume 6 litre
Flush volume small 3 litre
Calculated flow rate 0.11 l/s
Minimum flow pressure for calculated flow rate 0.5 bar
For floor inlets
For renovations, conversions and new buildings
For wall inlets with an inlet height of 18cm
For replacing floor-standing WCs with concealed cistern with maximum service opening height < 109cm
For replacing low-level exposed cisterns
For replacing half-high level exposed cisterns
For replacing floor-standing WCs with close-coupled exposed cistern
For connecting Geberit AquaClean Tuma WC complete solution, floor-standing WC
For replacing pressure flushing valves
For connecting Geberit AquaClean WC enhancement solutions, with accessories
For mounting on finished floors
For installation in front of drywalls or solid walls
Dual flush
Compensation of dimensional tolerances possible
Cistern, fully insulated against condensation
Side cladding made of aluminium brushed
Self-supporting
Soft-touch buttons for flush actuation and odour extraction
Orientation light and odour extraction activated when a user approaches
Orientation light can be set in seven colours
User detection range can be set
Day/night detection can be set for orientation light
Odour extraction unit with ceramic honeycomb filter can be installed without tools
Ceramic honeycomb filter for odour neutralisation can be replaced without tools
Odour extraction unit automatically switches off after a predefined running time
Operation with extra-low voltage, no mains voltage in cistern
Mains connection with flexible three-wire sheathed cable

Scope of Delivery:
Water supply connection set with 2 angle stop valves, 1/2″
Flush bend extension 160mm
Connection bend made of PP, diameter 90mm
Sleeve made of EPDM,?diameter?44 / 55mm
Adaptor socket made of PE-HD, diameter 90 / 110mm
Female socket for mains connection
Power supply unit
Fastening material
Base cover
Fastening material for drywall
