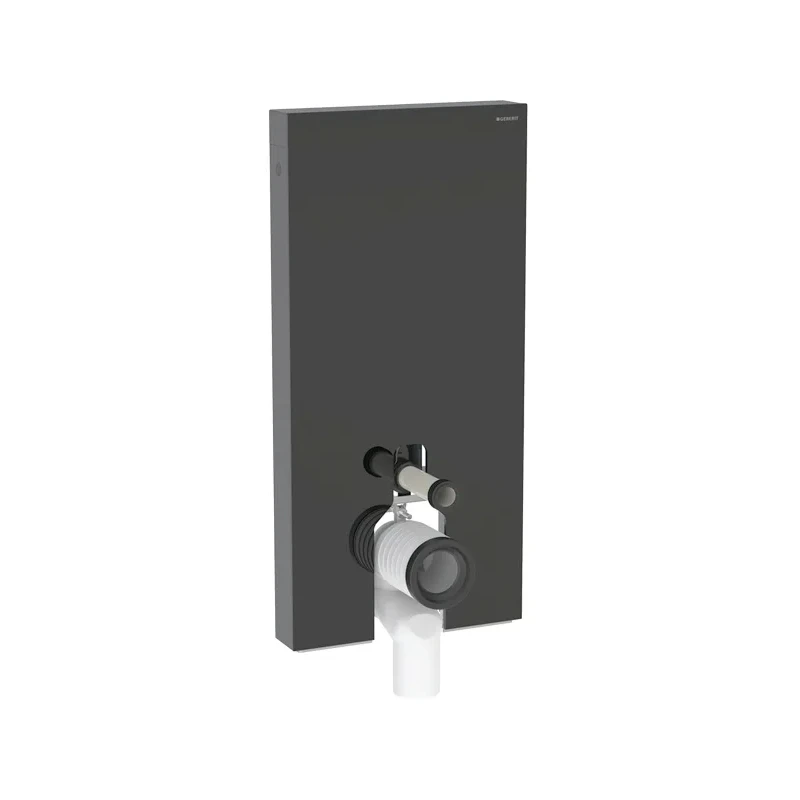

Geberit Monolith Plus For Floorstanding WC 101cm Black Glass/Black Chrome

Geberit Monolith Plus sanitary module for floor-standing WC, 101cm, front cladding made of glass
Front cladding: black glass
Side cladding: black chrome aluminium
Glass thickness 8mm
Protection degree IPX4
Protection class I
Nominal voltage 100-240 V AC
Mains frequency 50-60 Hz
Operating voltage 4.1 V DC
Power consumption 5 W
Flow pressure 0.1-10 bar
Maximum operating temperature, water 25°C
Flush volume 6 litre
Flush volume small 3 litre
For floor inlets
For renovations, conversions and new buildings
For wall inlets with an inlet height of 18cm

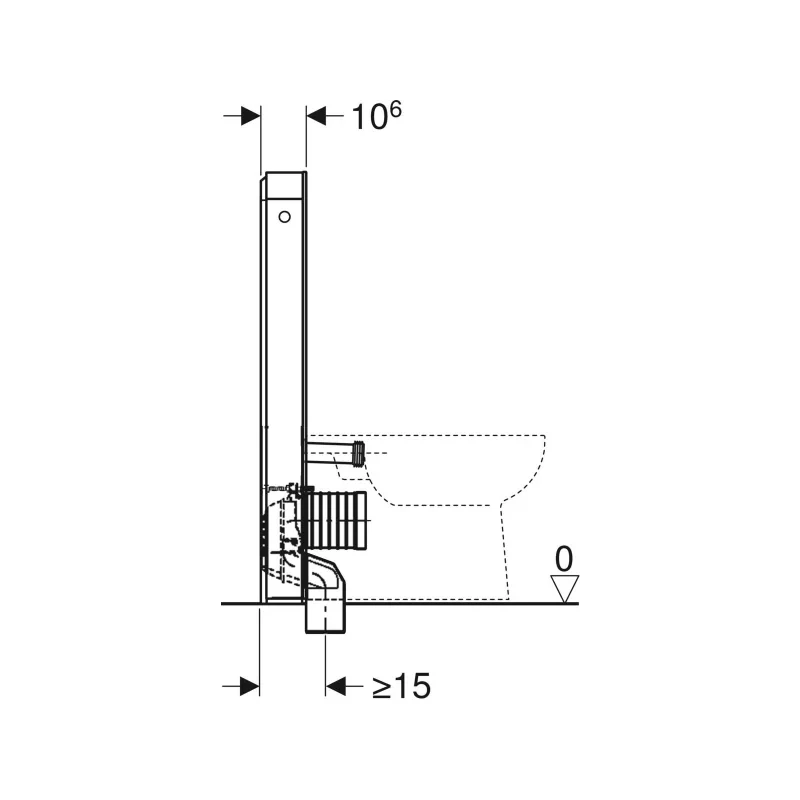

For floor-standing WCs with P-bend and water inlet height 32-36cm above the floor (EN 33)
For replacing low-level exposed cisterns
For replacing floor-standing WCs with close-coupled exposed cistern
For connecting Geberit AquaClean Tuma WC complete solution, floor-standing WC
For connecting Geberit AquaClean WC enhancement solutions, with accessories
For mounting on finished floors
For installation in front of drywalls or solid walls
Dual flush
Compensation of dimensional tolerances possible
Cistern, fully insulated against condensation
Side cladding made of aluminium brushed
Self-supporting
Soft-touch buttons for flush actuation and odour extraction
Orientation light and odour extraction activated when a user approaches
Orientation light can be set in seven colours
User detection range can be set
Day/night detection can be set for orientation light
Odour extraction unit with ceramic honeycomb filter can be installed without tools
Ceramic honeycomb filter for odour neutralisation can be replaced without tools
Odour extraction unit automatically switches off after a predefined running time
Operation with extra-low voltage, no mains voltage in cistern
Mains connection with flexible three-wire sheathed cable
Water supply connection on the bottom
Water supply connection on the left/right possible with accessories

Scope of Delivery:
Water supply connection set with 2 angle stop valves, 1/2″
Flush bend extension 160mm
Sleeve made of EPDM,?diameter?44 / 55mm
Connection bend made of PP, diameter 90mm
Adaptor socket made of PE-HD, diameter 90 / 110mm
Female socket for mains connection
Power supply unit
Base cover
Fastening material for drywall
Fastening material
