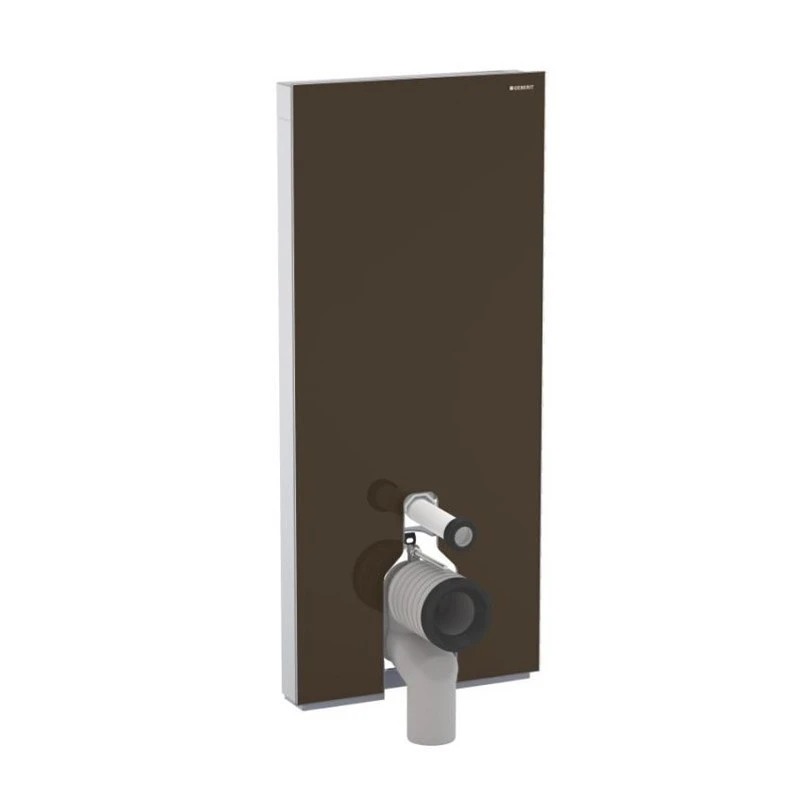

Geberit Monolith Plus Floor Standing WC 114cm Umber Glass

Geberit Monolith Plus sanitary module for floor-standing WC, 114cm, umber glass
For floor inlets
For renovations, conversions and new buildings
For wall inlets with an inlet height of 18cm
For replacing floor-standing WCs with concealed cistern with maximum service opening height < 109cm
For replacing low-level exposed cisterns
For replacing half-high level exposed cisterns
For replacing floor-standing WCs with close-coupled exposed cistern
For connecting Geberit AquaClean Sela floor-standing WC
For replacing pressure flushing valves
For connecting Geberit AquaClean WC enhancement solutions, with accessories
For mounting on finished floors
For installation in front of drywalls or solid walls
Dual flush
Compensation of dimensional tolerances possible
Front cladding made of glass (ESG)
Cistern fully insulated against condensation
Side cladding made of aluminium brushed
Self-supporting
Adjustable flush volume
Soft-touch buttons for flush actuation and odour extraction
Orientation light and odour extraction activated when a user approaches
Orientation light can be set in seven colours
User detection range can be set
Day/night detection can be set for orientation light
Odour extraction unit with ceramic honeycomb filter can be installed without tools
Ceramic honeycomb filter for odour neutralisation can be replaced without tools
Odour extraction unit automatically switches off after a predefined running time
Operation with extra-low voltage, no mains voltage in cistern
Mains connection with flexible three-wire sheathed cable
Water supply connection on the rear centre
Water supply connection on the left/right possible with accessories
Water supply connection on the bottom
Protection class I
Protection degree IPX4
Nominal voltage 100-240V AC
Mains frequency 50-60Hz
Operating voltage 4.1V DC
Power consumption 5W
Flow pressure 0.1-10 bar
Maximum operating temperature, water 25°C
Flush volume, factory setting 6 and 3 litre
Flush volume large, adjustment range 4.5 / 6 litre
Flush volume small 3 litre
Calculated flow rate 0.11 litre/second
Minimum flow pressure for calculated flow rate
