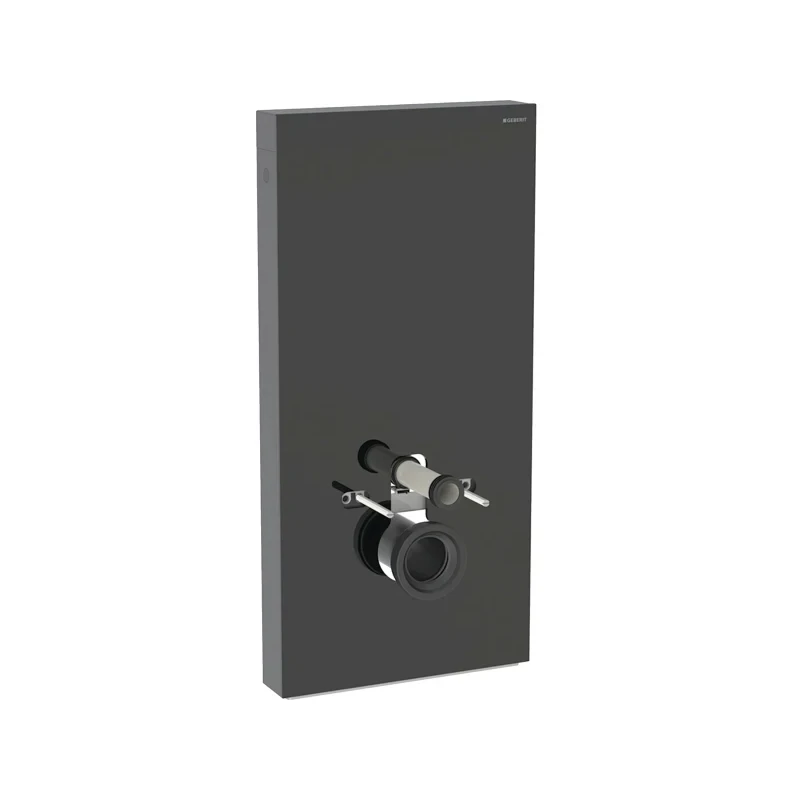

Geberit Monolith For Wall-Hung WC 101cm Black Glass/Black Chrome

Geberit Monolith sanitary module for wall-hung WC, 101cm, front cladding made of glass
Front cladding: black glass
Side cladding: black chrome aluminium
Glass thickness 8mm
Flow pressure 0.1-10 bar
Maximum operating temperature, water 25°C
Flush volume, factory setting 6 and 3 litre
Flush volume large, adjustment range 4.5 / 6 litre
Flush volume small 3 litre
For renovations, conversions and new buildings
For wall inlets with inlet height > 23cm
For replacing low-level exposed cisterns
For replacing wall-hung WCs with close-coupled exposed cistern
For Geberit AquaClean WC complete solutions
For connecting Geberit AquaClean WC enhancement solutions, with accessories
For mounting on finished floors
For installation in front of drywalls or solid walls
For compensating the offset between WC connections and wall drains using a stepped straight connector for wall-hung WCs
Dual flush
Compensation of dimensional tolerances possible
Height-adjustable up to 7cm
Fastening height WC ceramic appliance 35 +/- 1cm
Cistern, fully insulated against condensation
Side cladding made of aluminium brushed
Self-supporting
Adjustable flush volume
Water supply connection on the bottom
Water supply connection on the left/right possible with accessories

Scope of Delivery:
Water supply connection set with 2 angle stop valves, 1/2″
Flush bend extension 160mm
Sleeve made of EPDM,?diameter?44 / 55mm
Straight connector made of PE-HD, diameter 90mm
Adaptor socket made of PE-HD, diameter 90 / 110mm
2 threaded rods M12
Sound insulation set
Base cover
Fastening material for drywall
Fastening material
