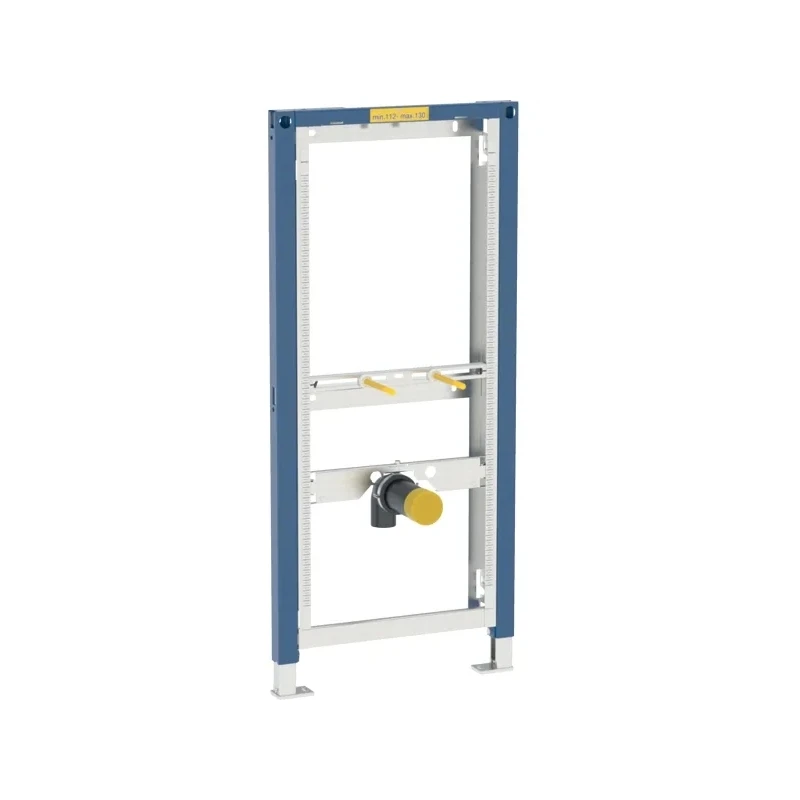

Geberit Duofix Frame For Urinal 112-130cm Universal

Geberit Duofix frame for urinal, 112-130 cm, universal
For urinals Preda and Selva, the urinal trap is already included in the scope of delivery
Suitable for waterless urinals
Compatible with Geberit urinals Preda (116.071.00.1) and Selva (116.081.00.1)
Product material: Steel
For drywall construction
For masonry walls
For installation in part or room-height prewall installations
For installation in room-height installation walls
For installation in part or room-height Geberit Duofix system walls
For installation of waterless urinals
For installation of 1-litre urinals, with accessories
For floor constructions 0-20 cm
Self-supporting frame, powder-coated
Frame with diameter?9 mm drilling holes for fastening in wood frame construction
Galvanized feet
Feet adjustable 0-20 cm
Non-slip leg supports
Rotatable foot plates
Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails
Element height adjustable to urinal, 112-130 cm
Connection positions for Geberit urinal Preda prepared
Fastening for connection bend, height-adjustable and sound-absorbing
Urinal fasteners M8 width- and height-adjustable
Crossbars with centring marks, adjustable without tools
Markings for connection positions of Geberit urinals Preda and Selva
Additional fastening possible for urinal with accessories
Can be refitted with accessories for urinals Laufen Lema 1-litre Compact and Tamaro-VS NEW 41122

Scope of Delivery:
2 fixing brackets
Connection bend made of PE-HD, diameter 50 / 63 mm
2 threaded rods M8
Fastening material
